MS1836S
HDMI1.4/DVI1.0 → CVBS/S-Video
General Description
The MS1836S is a single chip HDMI to CVBS/S-Video converter with embedded MCU and memory. It consistsof HDMI receiver, NTSC/PAL encoder with 10-bit Video DAC for output, with 10-bit Audio DAC, supportanalog stereo audio output, integrated OSD function. It is capable of video enhancement, 3D noise reduction. orightness/saturation/sharpness and hue adjustment, which can help the designer acquire the required videoquality. No programming technology can help customers to reduce production cost and cycle.
Features
(swipe right to see more)
| HDMI Receiver | Auto-mode Detection Auto Position (Blank) Detection Scaler |
|---|---|
|
◆Support HDMI 1.4b/DVI 1.0 ◆Max Resolution up to 4K@60Hz for YUV420format input ◆Support HDCP 1.4 ◆Support 8/10/12/16-bit color depth ◆ HDCP 1.4 ◆ Support extensive video format: CEA-861-F, VESA ◆Input format auto detection |
◆Independent horizontal and vertical scaling up and down from (1/8)x to 8x ◆Frame rate conversion |
| Video Enhancement | Embedded OSD |
|---|---|
|
◆Black/white level expansion ◆Color transition improvement ◆Dynamic peaking ◆Brightness.saturation. contrast and hue adjustable |
◆Supports 1 bit DRCS character mode ◆One OSD window with alpha-blending |
| Output Format | Audio |
|---|---|
|
◆10-bit triple-DAC for component video output ◆Supports CVBS and s-Video output ◆Supports NTSC(JM,4.43) and PAL(B,D.GHIMNNc.60) |
◆Support Industry-standard SPDIF output ◆Supports Compressed Dolby Digital, DTS digital audio Transmission ◆Supports sample rate at 32K/44.1K/48K/88.2K/96K/176.4K/192K sample rate ◆Support Analog Stereo Audio Output |
| MCU | System |
|---|---|
|
◆◆On-chip MCU ◆On-chip ROM/RAM/IO/Timer ◆Internal ROM code and external MCU or EEPROM for customization |
◆On-chip power on reset ◆External 27Mhz Crystal |
| Package | |
|---|---|
|
◆QFN-48 plastic(7mmx7mm) ◆PB-free and RoHS |

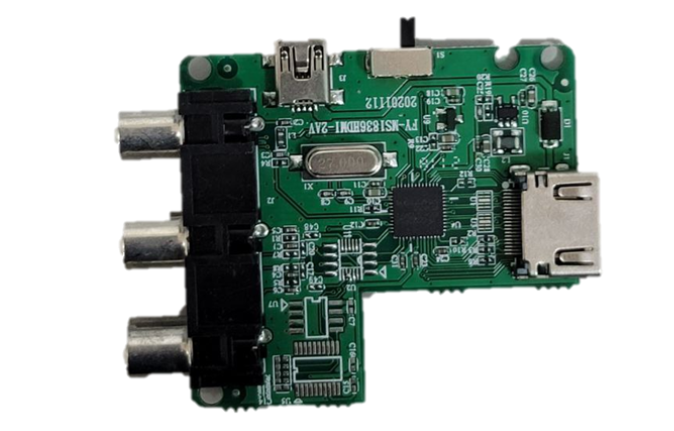

EVA Board

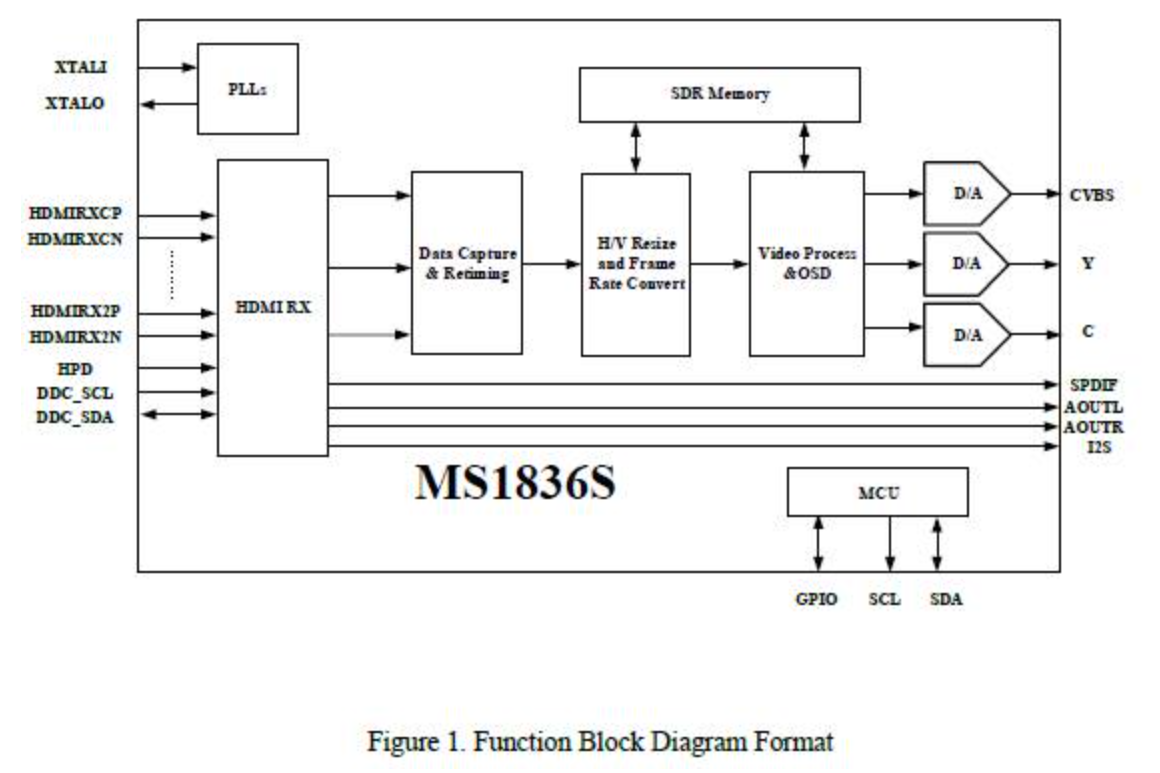

Function Block Diagram
