MS9333
HDMI1.4 → HDMI1.4/DVI1.0
General Description
The MS9333 is a one-to-two active splitter that supports a signaling rate up to 3.0Gbps and I2S & SPDIF output. With 3.0Gbps capability, the MS9333 can support the new 4Kx2K@30Hz video format. The MS9333 equalizes incoming TMDS data with optimal quality regardless of the incoming signal quality. The highly acclaimed equalization technology provides for support of long or low-quality HDMI cables at even the highest speeds. Input terminations of the TMDS inputs and output current levels are both programmable. The chip also supports on-chip HDCP Keys RAM and EDID Memory.
Features
(swipe right to see more)
| Features | Package |
|---|---|
|
◆Compliant with HDMI 1.4b and DVI 1.0 ◆Support One Port input, 2 Port output ◆Support HDMI 4Kx2K@30Hz ◆Support 10/12/16 bit Deep Color ◆Support I2S and SPDIF output ◆Audio output sample rate 32KHz---192KHz ◆Adaptive input equalization ◆Output Pre-emphasis ◆Integrated pre-programmed HDCP keys ◆Embedded EDID RAM saves external EDID ROM costs ◆Active port detection by monitoring Power 5V inputs and TMDS input clock ◆Support 5V TTL DDC |
◆RoHS Compliant ◆LQFP64 Package |

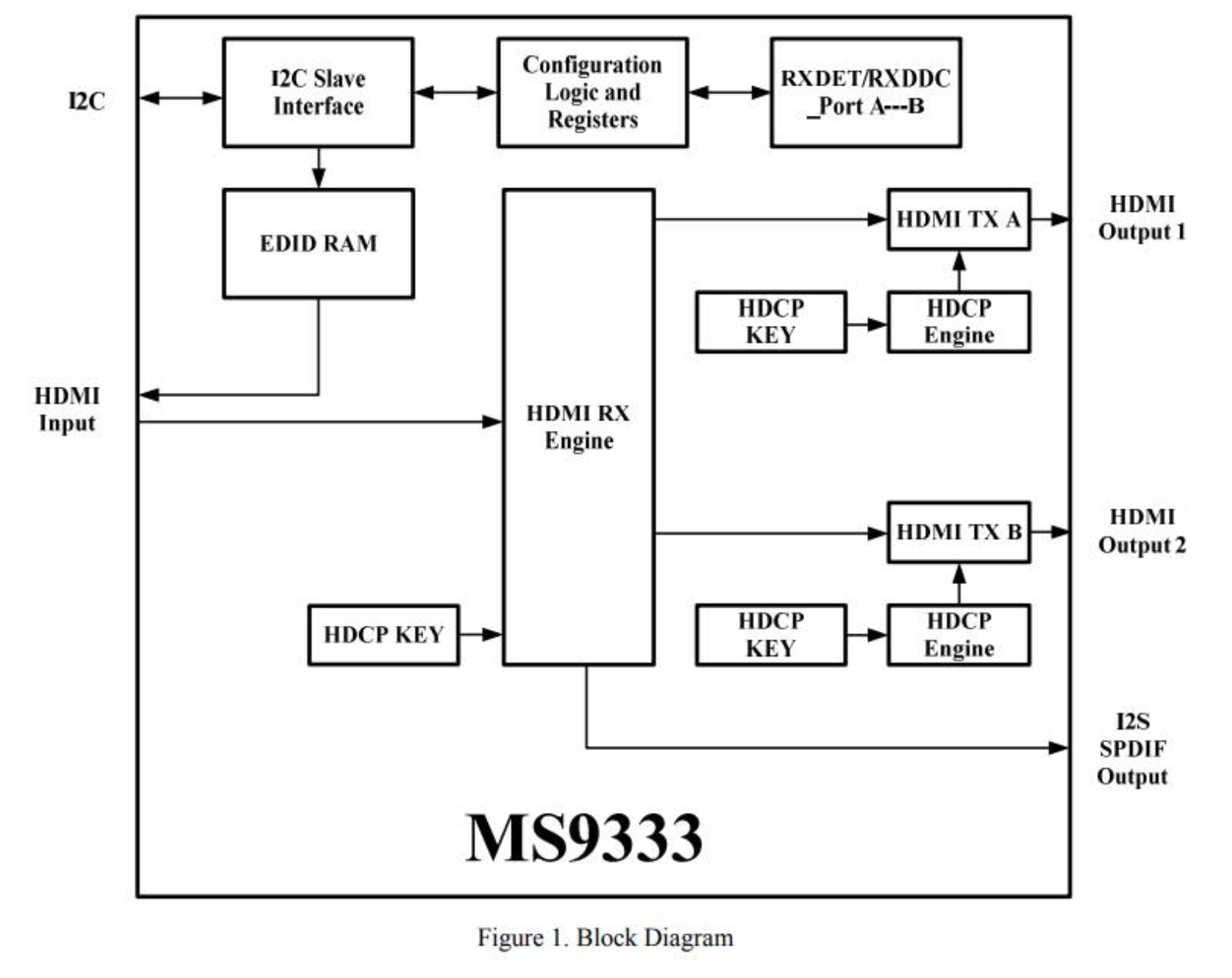

Function Block Diagram
