MS1826
HDMI Video Processor

General Description

The MS1826 is a multi-functions video processor chip. It consists of 4 independent channel HDMI inputs and 4 independent channel HDMI outputs, also includes 4 channels I2S & SPDIF digital audio input or output. Support 4 OSD windows with user defined font library. It can process interlaced or pr gressive video input and graphic input. It has four independent video playback engines which can support PIP or POP application. Also can split one input video into maximum four parts. In all video input & output channels, it provides a high quality display output. It is capable of advanced de-interlacing, video enhancement and frame rate conversion.

Features

(swipe right to see more)

HDMI Input & Output
Digital Audio Input & Output
◆4 independent channel for both input and output
◆Up to 4K@30Hz
◆Signal range: 500mV
◆HDMI_1.4b & DVI_1.0
◆HDCP_1.4
◆Support extensive video format: CEA-861-F, VESA
◆Support RGB/YCbCr444/YCbCr422/YCbCr420(only support input) color space
◆Support RGB/BT601/BT709 calorimetry
◆Support 8/10/12/16 bits color depth
◆Input video timing & info frame auto detection
◆Embedded programmable 512 bytes (maximum)EDID
◆Input HPD programmable & output HPD auto detection
◆Input auto EQ
◆Audio sample rate from 32KHz to 192KHz
◆Support HBR audio
◆Supports four channel SPDIF & I2S digital audio
◆Audio sample rate from 32KHz to 192KHz
Frame Rate Conversion
Embedded Memory & Controller
◆Independent horizontal and vertical scaling
◆Frame rate conversion
◆16-bit data width DDR memory access
◆128MBy es embedded DDR memory
◆Memory clock up to 400MHz
De-Interlace
Video Enhancement
◆Support HD 1080I to 1080P conversion
◆Support SD NTSC/PAL to 480P/576P conversion
◆Edge correction de-interlace
◆4-field motion adaptive de-interlace for SD, and 3-field for HD
◆Global nise reduction
◆3:2/2:2 pull-down detection
◆Dynamic peaking
◆Brightness、saturation、contrast、HUE adjustment
Video Processing
Embedded OSD
◆Four independent video scaler
◆Maximum 8 input for video mixer engine with alpha
◆Support one video ration with fixed degree (90°, 180°, 270°)
◆Video da a compression for frame buffer
◆Horizontal and vertical video splitting operation for each input
◆Horizontal and vertical video flip
◆User defined 1bpp\2bpp\4bpp font library which size up to 128KBytes, font size up to 32*64
◆Four OSD window with alpha-blending,maximum 4096 fonts display for each window
◆Hardware fade in & fade out
◆Rotation with fixed degree (90°, 180°, 270°)
◆Support tranparency, highlight, background and forground color defined by user
◆Support color key
◆Mixed with video with alpha blening
2-wire I2C Slave Interface Package
◆HLQFP-256(28mm×28mm)
◆3.3V/2.5V/1.5V/1.1V power supply
◆PB-free and RoHS2.0 compliant

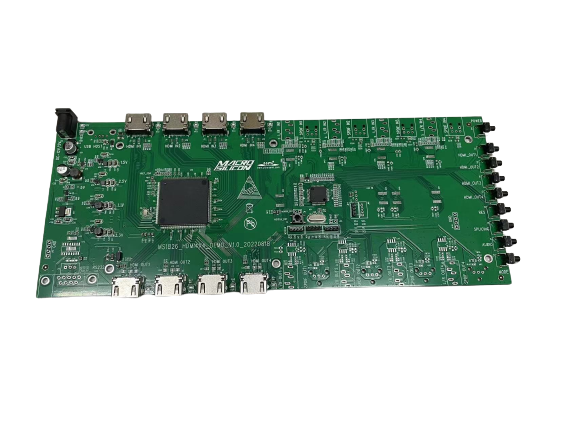

EVA Board

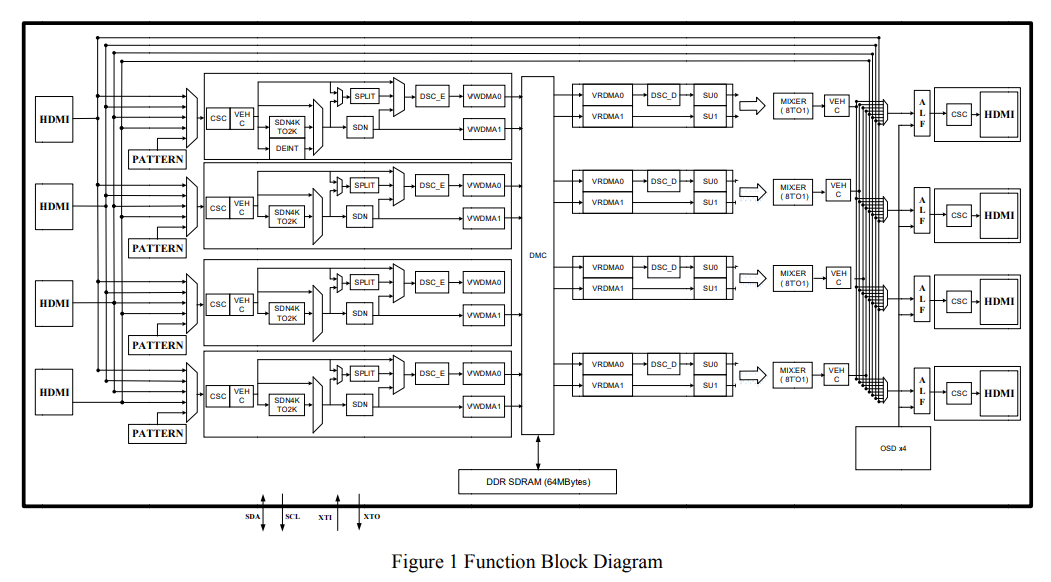

Function Block Diagram
