MS2130
HDMI1.4/DVI1.0→USB3.0

General Description

MS2130 is a USB 3.0 HD video and audio capture chip, which integrates USB 3.0 device controller, data transceiver module, video and audio processing module. MS2130 can transmit the HDMI input audio and video signals to PC, smartphone and tablet for preview or acquisition through USB 3.0 interface. MS2130 output supports YUV422 and MJPEG modes, compatible with Windows, Android and Mac OS systems.

Features

(swipe right to see more)

HDMI RX
Audio
◆HDMI 1.4b compatible
◆Support DVI1.0
◆Support HDCP 1.4
◆Support RGB444, YCBCR422, YCBCR444, YCBCR420 color space
◆Support deep color 24/30/36 bit mode
◆Support CEA-861 /CEA-861-F video format
◆Max input resolution 4K(3840×2160@30Hz)
◆USB audio default 48KHz stereo output
USB 3.0
OS Support
◆Integrated USB 3.0 device
◆Compatible with USB 2.0 device mode
◆USB video conforms to UVC1.0 specification
◆USB audio conforms to UAC1.0 specification
◆USB video output supports both YUV422 and MJPEG modes
◆USB video output resolution Default max resolution 1920×1080@60Hz
◆Windows XP/7/8/10/11
◆Android 5.0 or higher
◆Linux
◆Mac OS
Clock
Reset
◆External 24MHz passive crystal oscillator
◆On-chip PLL
◆On-chip power on reset
Package
◆QFN-64 plastic(9mm×9mm)
◆RoHS compliant

EVA Board

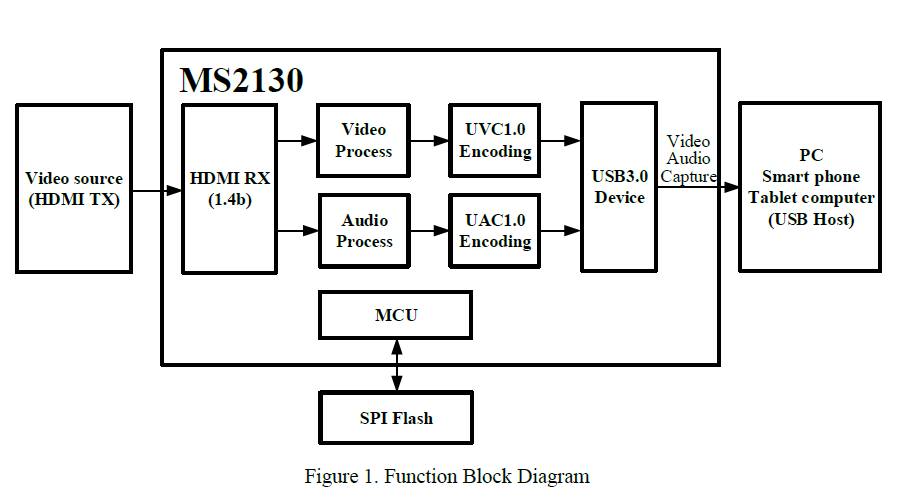

Function Block Diagram
