MS9132
USB3.0→HDMI1.4/DVI1.0

General Description

MS9132 is a USB 3.0 projection screen chip, which integrates USB 3.0 device controller, data transceiver module, video and audio processing module. MS9132 can display or expand the information on PC, smartphone and tablet to larger display devices through USB 3.0 interface, and supports the HDMI video interface output.

Features

(swipe right to see more)

HDMI TX
Audio
◆HDMI 1.4b compatible
◆Supports EDID / HPD process
◆Supports DVI 1.0 mode
◆Default max output resolution: 1920×1080@60Hz
◆Default output 48KHz stereo
USB 3.0
OS Support
◆Integrated USB 3.0 device
◆Compatible with USB 2.0 device mode
◆Integrated USB video and audio processing module
◆Windows 10 1607 or higher
◆Android 5.1 or higher
◆Mac OS 10.14 or higher
Clock
Reset
◆External 24MHz passive crystal oscillator
◆On-chip PLL
◆On-chip power on reset
Package
◆QFN-64 plastic(9mm×9mm)
◆RoHS compliant

EVA Board

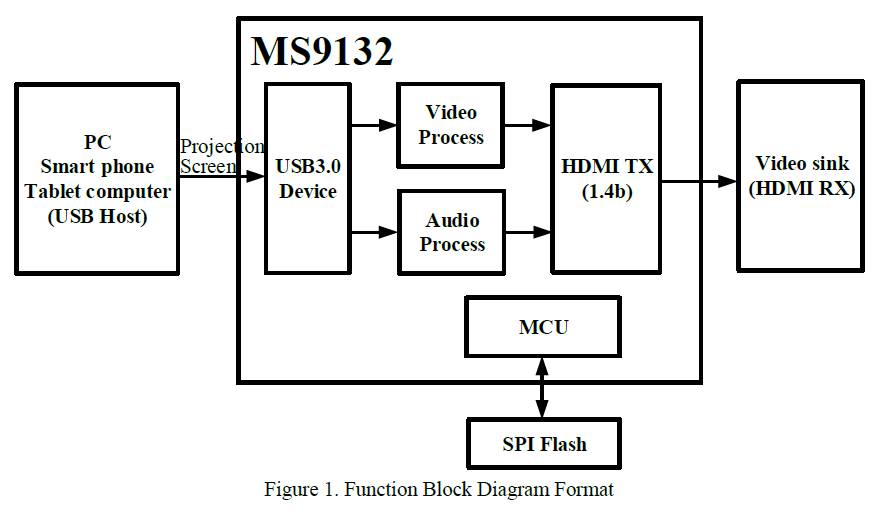

Function Block Diagram
