MS2107
CVBS/S-Video→USB2.0

General Description

MS2107 is a video and audio acquisition chip, which integrates USB 2.0 controller and data transceiver module, video ADC module, audio ADC module, video and audio processing module. MS2107 can transmit CVBS, SVideo and audio signals to PC, smartphone and tablet through USB interface for preview or acquisition. MS2107 output supports YUV422 and MJPEG modes, compatible with Windows, Android and MacOS systems.

Features

(swipe right to see more)

Video input
Audio input
◆Supports CVBS and S-Video input
◆Compatible with NTSC/PAL video format
◆Automatic identification of input signal source
◆Supports 3D decoder
◆On-chip 24-bit audio ADC
◆Supports digital audio I2S input
Video output
Audio output
◆Supports MJPEG and YUV422 modes
◆Max output resolution: 1920×1080@30Hz
◆Supports user customized resolution
◆Supports Brightness/Contrast/Saturation/Hue adjustment
◆Compatible with USB 1.1 mode
◆USB video conforms to UVC1.0 specification
◆USB audio output 48KHz stereo
◆USB audio conforms to UAC1.0 specification
USB 2.0
OS Support
◆integrated USB 2.0 device
◆Supports descriptor customization
◆Windows XP/7/8/10
◆Andriod5.0 or higher
◆MacOS
Clock
Power & Reset
◆Need external 12MHz passive crystal
◆On-chip PLL
◆On-chip 1.2V & 3.3V LDO
◆On-chip power on reset
Package
◆LQFP-48 plastic(7mm×7mm)
◆RoHS compliant

EVA Board

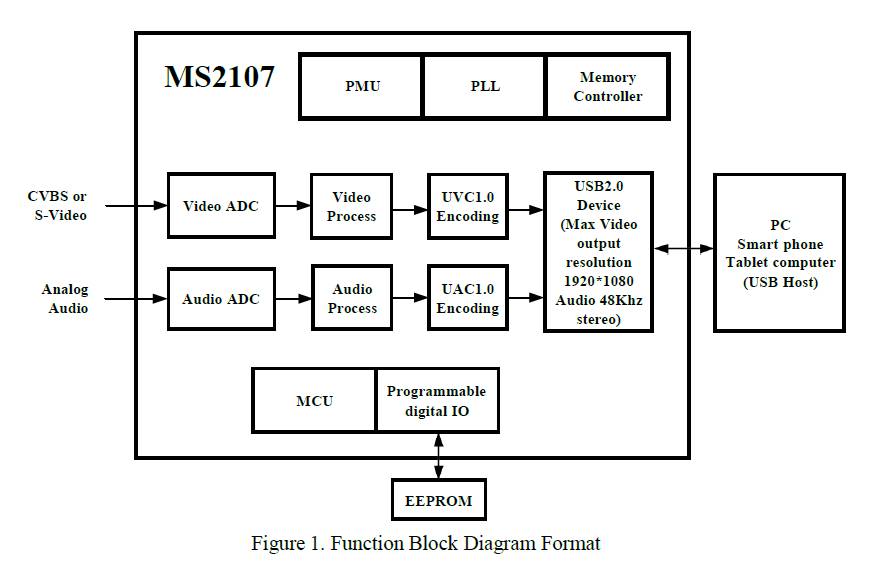

Function Block Diagram
