MS9601A
HDMI 3-to-1 Switch

General Description

The MS9601A is a HDMI1.4b 3 IN to 1 OUT switch which supports maximum signaling rate up to 3Gbps. With 3Gbps capability, the MS9601A can support 4Kx2K@30Hz and 4Kx2K@60Hz (YUV420) video formats. It also integrates DDC and HPD switcher, which will switch with the corresponding TMDS channel at the same time The chip incorporates two voltage regulators to provide all necessary powers for normal operation. For flexible use, the operation mode of internal MCU with Rom code or external MCU can be selected. Supports up to 6 chip addresses for easy cascading of chips. The MS9601A equalizes incoming TMDS data with optimal quality regardless of the incoming signal quality. The highly acclaimed equalization technology provides for support of long or low-quality HDMI cables at even the highest speeds.

Features

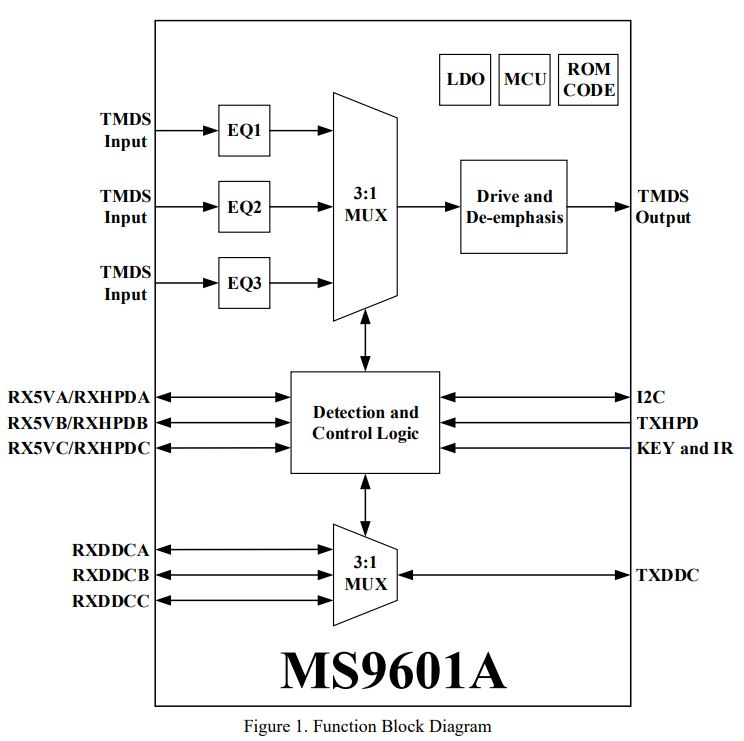

Function Block Diagram
